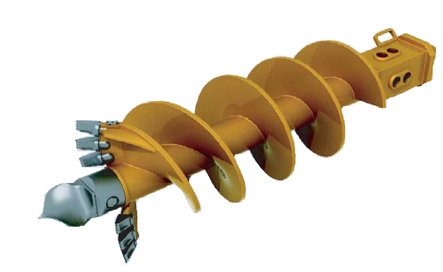

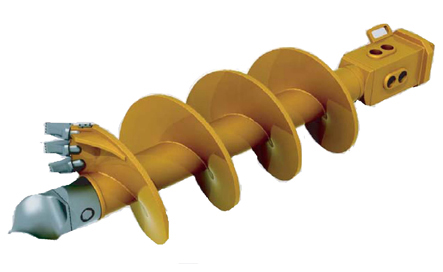

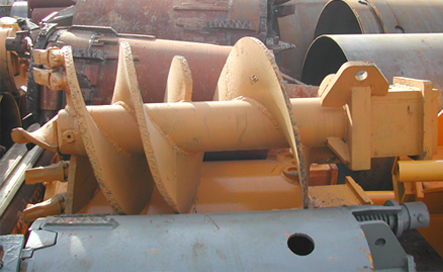

Soil auger

The soil auger is perfectly fit for the Kelly drilling in foundation technology, which consisted of the Kelly box, core pipe, flight, wear parts (teeth) and pilot.

Soil auger��pilingtools Soil auger��pilingtools Soil auger��pilingtools

Details
Appliance

Suitable for Clay, limestone, silt, sand and gravel soil conditions etc.

Tool type

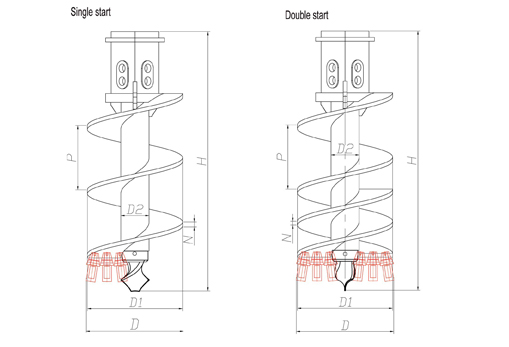

Single start and Double start design.

Tool dimensions

Dia.D

Flight

dia.D1

Pipe Dia.D2

Flight thicknessN

Pitch P

Height H

600

560

180

30/20

400

2100

800

760

219

30/20

500

2100

1000

960

219

30/20

500

2100

1200

1160

219

30/20

500

2100

1500

1460

219

30/20

500

2100

1800

1760

219

30/20

500

2100

2000

1960

219

30/20

500

2100

2200

2160

219

30/20

500

2100

2500

2460

219

30/20

500

2100
